Technical Specifications

• Appliance type: Cooktop

• Installation type: Built-in appliance

• Operation type: Electric

• Total number of zones usable simultaneously: 4

• Built-in dimensions (H x W x D): 223 x 560–560 x 490–490 mm

• Width: 592 mm

• Interior unit dimensions (H x W x D): 223 x 592 x 522 mm

• Packaged product dimensions (H x W x D): 431 x 697 x 672 mm

• Net weight: 22.5 kg

• Gross weight: 26.6 kg

• Residual heat indicator: Separate

• Control panel position: Front section of the cooktop base

• Main surface material: Glass-ceramic

• Surface color: Black

• Power cable length: 110 cm

• Enamelled zones: No

• Quick heating: All zones

• Power of 2nd zone (kW): 3.6 kW

• Number of power levels: 9 levels + 2 intensive

• Maximum air extraction rate: 500 m³/h

• Intensive recirculation performance: 595 m³/h

• Maximum air recirculation rate: 487 m³/h

• Intensive extraction air rate: 622 m³/h

• Noise level: 69 dB(A) re 1 pW

• Odor filter: No

• Filter cleaning reminder: Yes

• Voltage: 220–240 / 380–415 V

• Frequency: 50–60 Hz

• Included accessories: 1 x Telescopic air recirculation connector, 1 x Clean Air Plus filter

Technical Features

• Facette front design without perimeter frame

• Multitouch+: Control power directly with the digital touch ring.

• 17 power levels: Precise adjustment of heat across 17 levels (9 main levels and 8 intermediate levels).

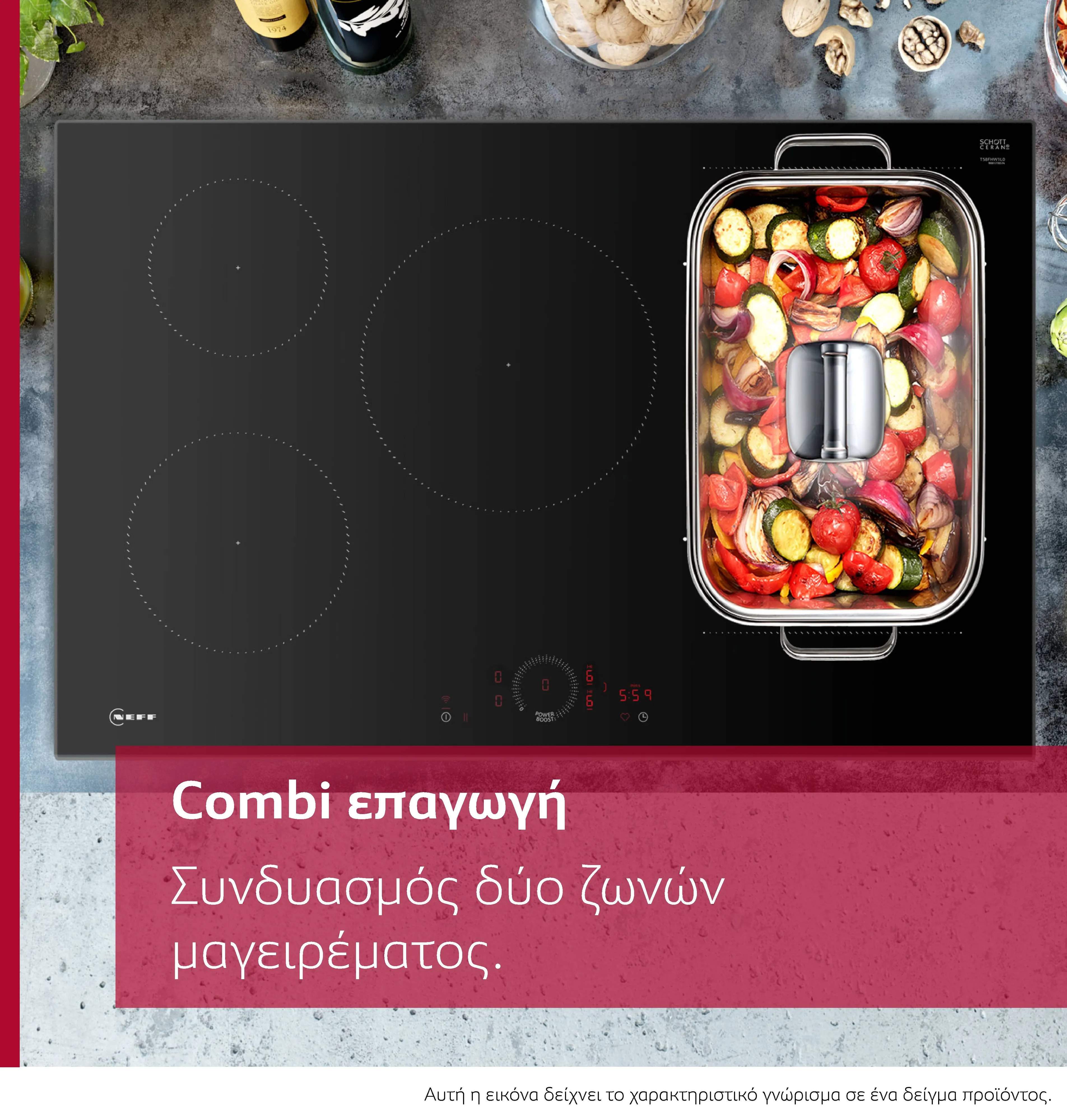

• 2 flexible combiZone cooking zones

• Use of larger cookware: Create a large cooking zone by combining two standard zones.

• Front left: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW)

• Back left: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW)

• Back right: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW)

• Front right: 190 mm, 210 mm, 2.5 kW (max. 3.7 kW)

General Features

• Pan boost, selectable via HC app/Favorites: Allows cookware to heat faster than the highest medium level while protecting the coating of each pan.

• 11 frying temperatures: Prevents burning via automatic temperature control of the built-in sensor.

• PowerBoost function for all zones: Up to 35% faster heating compared to the highest power level of the induction cooktop.

• Quick Start: On activation, the cooktop automatically selects the appropriate cooking zone for the placed cookware.

• Restart function: If the cooktop is accidentally turned off, it can restore all previous settings if reactivated within 4 seconds.

• Alarm function: Audible alert when the set time has elapsed (e.g., for boiling pasta).

• Remote access via app: Check whether the cooktop is off even when not at home, and access recipes or additional functions via Home Connect.

• Favorites via HC: Direct access to favorite functions with a customizable button (via Home Connect account).

• Cooking Assistant: Easily find the correct temperature setting for a specific dish via Home Connect app.

• Keep warm via HC app/Favorites: Keeps dishes warm at a preset low-power level.

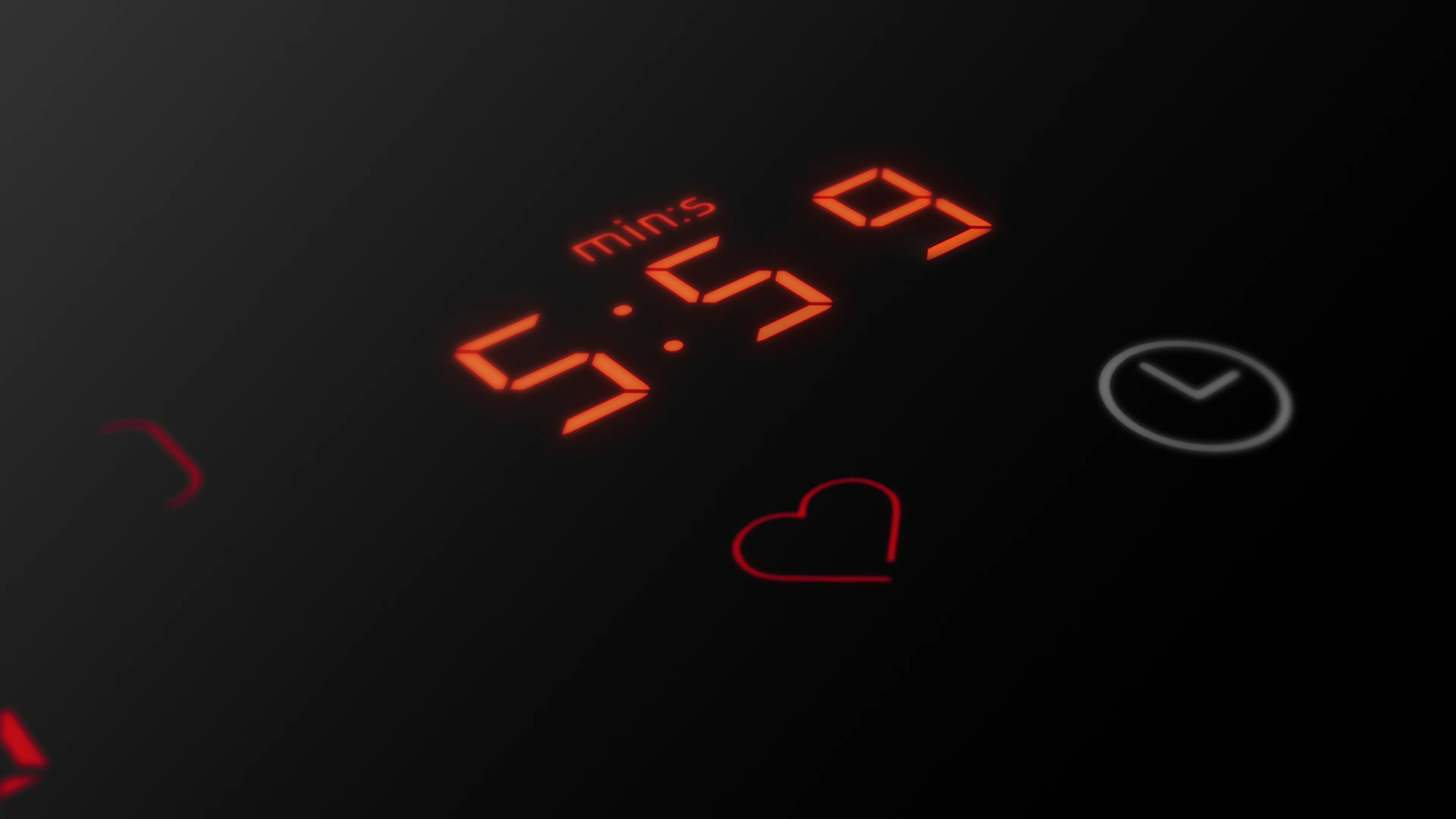

• Timer: Turns off the cooking zone when the set time expires (e.g., for boiled eggs).

• Adjustable sound level: According to personal preferences and needs.

• Dual heat residual indicator (H/h) for each zone: Shows which cooking zones are still hot or warm.

• Central Stop switch: Turns off all cooking zones with a single press.

• Automatic safety shut-off: The cooktop stops heating after a certain period of inactivity for safety.

• Child safety lock: Prevents accidental activation of the cooktop.

Integrated Ventilation System

• Suitable for extraction or recirculation with 4 modes: Free-flow recirculation without ducts, partial or fully ducted recirculation, and air extraction with ducts. The set for free-flow recirculation, four cleanAir odor filters, and adapter are included. The set allows easy and quick installation and fits all countertops ≥60 cm deep.

• Other installation types: Require one of the following accessory kits.

• Z861KR1: Optional starter kit for partial ducted air recirculation for countertops/islands ≥60 cm deep, max height 960 mm.

• Z861KR0: Optional starter kit for partial ducted air recirculation for countertops/islands ≥70 cm deep, max height 960 mm.

• Various duct accessories: Available for fully ducted extraction or any other custom recirculation setup.

• Fully automatic extraction with air quality sensor:

• Automatic activation when a cooking zone is used.

• Extraction according to EN 61591 in extraction mode: min normal 154 m³/h, max normal 500 m³/h, intensive 622 m³/h.

• Extraction according to EN 61591 in recirculation mode: min normal 117 m³/h, max normal 487 m³/h, intensive 595 m³/h.

• Noise levels according to EN 60704-3:

• Recirculation: min normal 41 dB re 1 pW, max normal 68 dB re 1 pW, intensive 72 dB re 1 pW.

• Extraction: min normal 42 dB re 1 pW, max normal 69 dB re 1 pW, intensive 74 dB re 1 pW.

• Efficient Drive BLDC motor: Maximum performance and energy efficiency.

• Automatic ventilation overrun: 30 min (recirculation), 12 min (extraction).

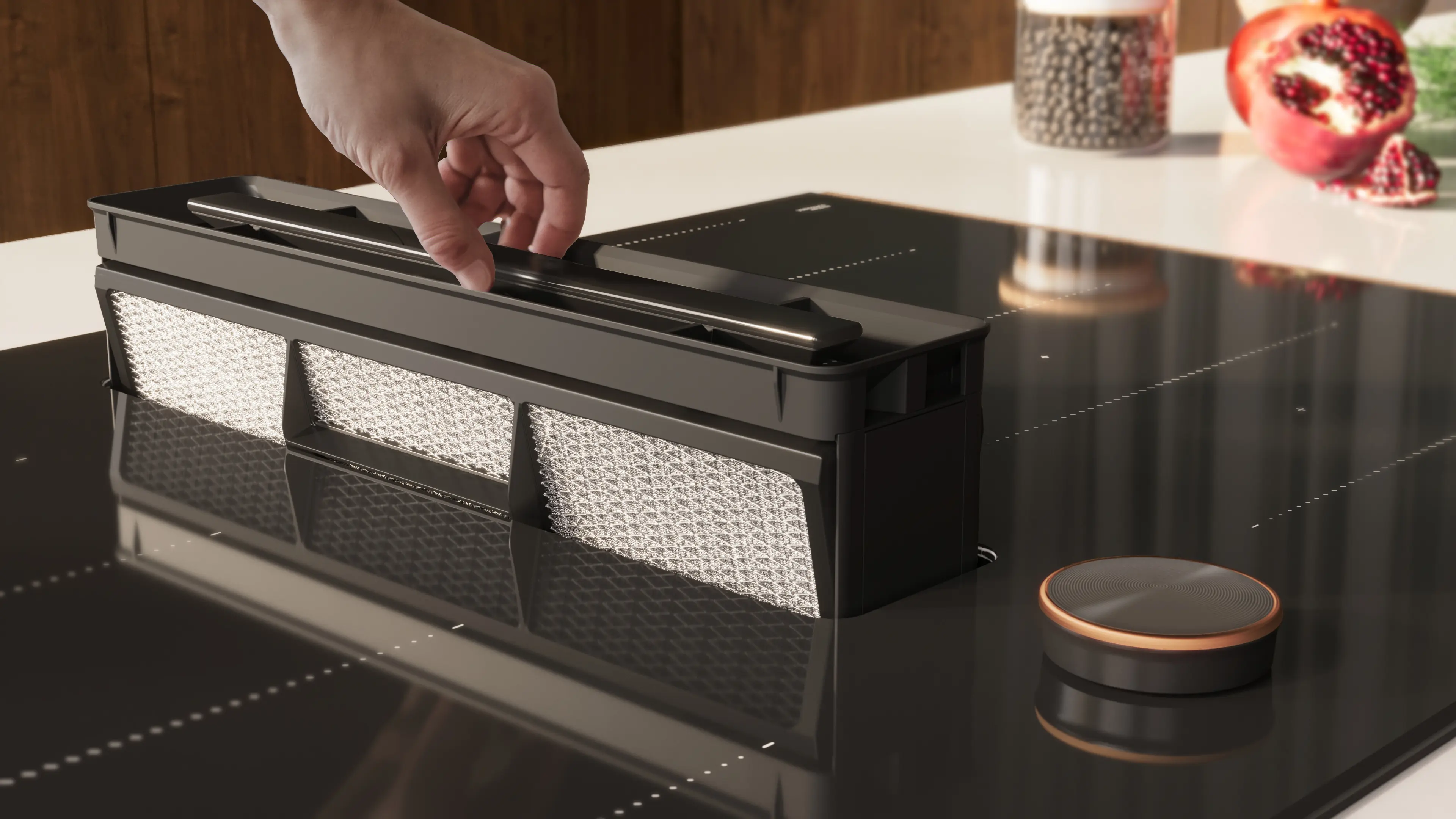

• Stainless steel filter: Dishwasher safe.

• Overflow container (~900 ml): Easy removal/insertion, dishwasher safe.

• Odor absorption rate: 85%

• Grease retention efficiency: 94%

• Energy class: B (scale A+++ to D)

• Average annual energy consumption: 57 kWh/year

• Grease retention efficiency rating: B

• Safety compliance: IEC 60695-11-5 (needle flame test), flammability class V2 according to UL94.

• Fluid dynamic efficiency: A

Dimensions

• Device dimensions (H x W x D mm): 223 x 592 x 522

• Built-in dimensions (H x W x D mm): 223 x 560 x (490–490)

• Total power: 7.4 kW

• Installation: Can be installed in a 60 cm cabinet
