Type & Dimensions

• Type: Built-in / Built-under

• Power cable length: 130 cm

• Built-in dimensions (H x W x D): 340 mm x 860 mm x 300 mm

• Product height: 60 mm

• Minimum distance from electric hob: 430 mm

• Minimum distance from gas hob: 650 mm

• Net weight: 10.8 kg

• Installation type: Built-in

Performance & Technical Specifications

• Control type: Electronic

• Number of speed settings: 3 speeds + intensive setting

• Maximum extraction rate: 433 m³/h

• Intensive recirculation performance: 556 m³/h

• Maximum recirculation performance: 413 m³/h

• Intensive extraction with air outlet: 699 m³/h

• Maximum air flow: 433 m³/h

• Number of lamps: 2

• Noise level: 57 dB(A) re 1pW

• Air outlet diameter: 150 mm

• Grease filter material: Washable stainless steel

• EAN code: 4242005527786

• Power: 115 W

• Voltage: 220–240 V

• Frequency: 50 / 60 Hz

• Plug type: Gardy plug with grounding

Cabinet Protection

• Extra cabinet protection against steam

Digital Features

• Home Connect: Control, monitor and adjust hood settings via smartphone or tablet (only in countries where Home Connect is available)

• CookConnect System: Hood control via hob; automatically activates during cooking via WiFi connection

• Smart Hood Automatic: Automatically adjusts fan speed based on cooking data from compatible Series 6 hobs

• LED lighting with adjustable color temperature via Home Connect app

• Voice Control via popular smart assistants (where available)

• Performance profiles: Choose between standard, performance, or silent profiles via Home Connect

• Favorites via Home Connect: Direct access to preferred functions with one configurable button

• Filter saturation indicator and reset function via Home Connect app

• Intermittent operation available via Home Connect

General Features

• 2 x LED 3W with adjustable color temperature

• Color temperature: 3500 K

• Lighting intensity: 437 lux

• Lighting efficiency class: A

• Average annual energy consumption: 27.2 kWh/year

• Fluid dynamic efficiency: A

• Grease filtration efficiency: B

• 2 metal grease filters

• Chimney extensions available as optional accessories for higher wall cabinets

• Made in Germany: Produced in a CO₂-neutral factory

Dimensions

• Built-in dimensions (H x W x D): min. 340 mm x 860 mm x min. 300 mm

• Recirculation mode (H x W x D): 340 x 898 x 298 mm

• Duct diameter: Ø 150 mm

• Connection cable with plug: 1.3 m

• Total power: 115 W

Design

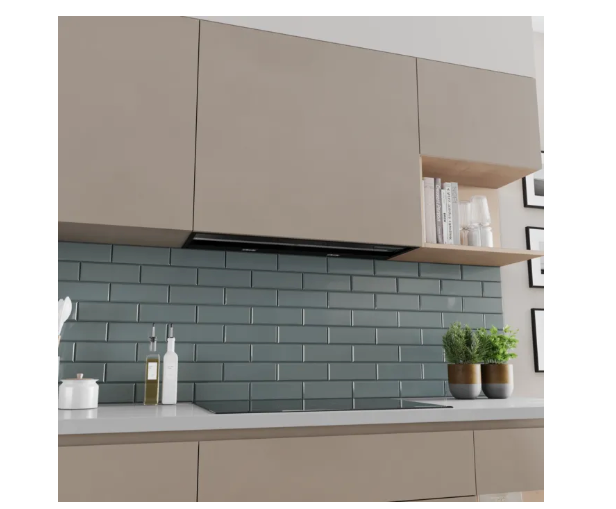

• Fully integrated into kitchen cabinet

• Glass panel with touch control for easy operation and improved steam capture

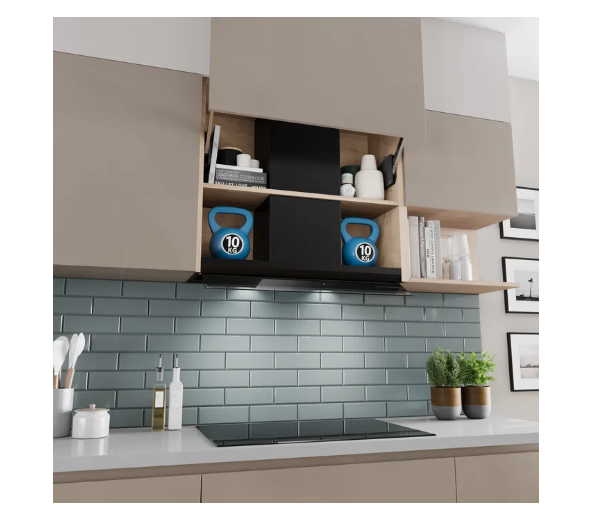

• Increased storage space: maximum capacity 10 kg on each side of the hood

Operation & Performance

• 3 normal speed levels + 1 intensive

• EcoSilence Drive BLDC motor for maximum efficiency and energy savings

Extraction mode (EN 61591 / EN/IEC 60704-2-13):

• Level 1: 244 m³/h – 42 dB(A)

• Level 2: 339 m³/h – 50 dB(A)

• Level 3: 433 m³/h – 57 dB(A)

• Intensive: 699 m³/h – 68 dB(A)

Recirculation mode (with optional Long-life Clean Air kit):

• Level 1: 231 m³/h – 53 dB(A)

• Level 2: 329 m³/h – 61 dB(A)

• Level 3: 413 m³/h – 66 dB(A)

• Intensive: 556 m³/h – 72 dB(A)

• Energy efficiency class: A+ (on a scale from A+++ to D)

• Suitable for extraction or recirculation mode

• Recirculation requires Long-life Clean Air kit (optional accessory)

• Long-life Clean Air filter absorbs strong odors (e.g., fish) and pollen

• Filter lifespan can be extended up to 4 times by regenerating it in the oven (3 hours at 100°C)

Comfort Features

• Automatic reset from intensive to normal setting after 6 minutes

• Automatic run-on function for 10 minutes

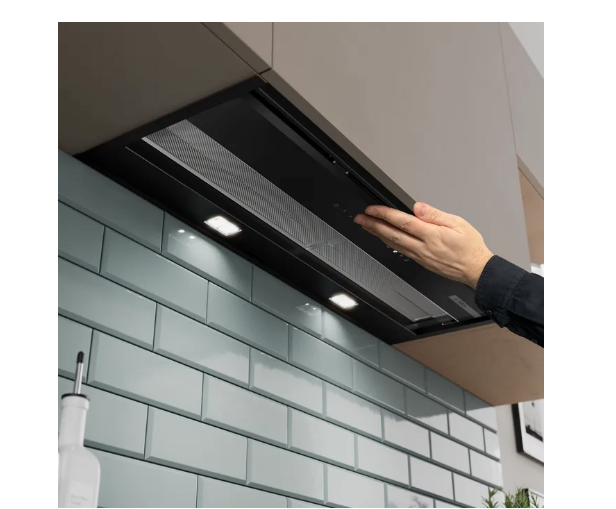

• Hood and light automatically switch on/off when opening or closing the glass panel

• SoftLight dimming system for smooth light on/off

• Independent light control when glass panel is closed via touch control

• Light dimmer function

• Dishwasher-safe metal grease filters

• Easy cleaning with smooth surfaces

• Coated surfaces for reduced visible fingerprints
